UNI-T UPO1000CS Series Digital Storage Oscilloscope

Availability: In Stock / Short Lead Time
Only %1 left

UNI-T's UPO1000CS series is a versatile and affordable digital phosphor oscilloscope, perfect for sustained use in in electronic & electrical design, debugging, education and industrial design.

  • Bandwidth: 100 ~ 200 MHz

  • Maximum Memory Depth: 56 Mpts

  • Real-Time Sample Rate: 1 GSa/s

UNI-T UPO1000CS Series Digital Phosphor Oscilloscopes

UNI-T's UPO1000CS series is a versatile and affordable digital phosphor oscilloscope designed for electronic and electrical design, debugging, education, and industrial applications. Leveraging parallel digital signal processing technology, this series enhances data processing speed and waveform capture rates. With its innovative Ultra Phosphor technology, it vividly illustrates the cumulative effect of tested signals through a multi-layered afterglow.

Unlike traditional storage oscilloscopes, digital phosphor oscilloscopes offer three-dimensional waveform data representation in terms of amplitude, time, and signal intensity, thanks to their extended persistence. The inclusion of Fast Acquire technology ensures precise capture of abnormal events such as video, jitter, noise, and runt signals.

Key Series Features

Web Control

The oscilloscope can be connected and remotely controlled via the web page. Support PC and mobile phone dual platform operation.  This eliminates the need to install local programs, saving space and time.

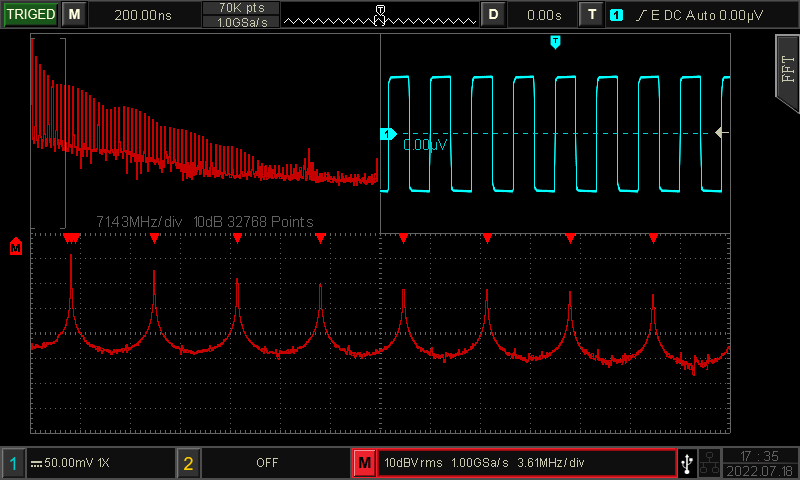

1Mpts FFT sampling point

The UPO1000CS series has 1Mpts FFT sampling points and can also set the practical functions of a spectrum analyzer such as frequency range, detection mode, and spectrum marking. It is convenient for you to analyze the signal in the frequency domain on the oscilloscope.


Deep Storage Depth

56M sampling points per channel. This enables the oscilloscope to maintain a high sampling rate in a wider time base range, At the same time considering the whole and details of the waveform, which greatly improves the ability to capture abnormal waveforms.


256 Gray Level Display

The original Ultra Phosphor display technology is easy to obtain more waveform information and detailed observation.

Key Features and Functions

Output rating : 36 W

  • Voltage: 60 V
  • Current: 0.6 A
  • Power: 36 W

Programming accuracy : ± (% of output + offset)

  • Voltage: 0.05% + 20 mV
  •  Current: 0.05% + 0.4 mA

Ripple & noise (20 Hz to 20 MHz)

  • Voltage rms: 1.55 mV
  • Voltage peak-to-peak: 30 mV
  • Current rms: 200 µA

Readback accuracy : ± (% of output + offset)

  • Voltage: 0.05% + 12 mV
  • Current: 0.05% + 0.3 mA

Keysight E36100B Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. Use the highly accurate low-current measure feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to your instrument quickly via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device. Choose the best model for your needs: five models offer up to 5 A or 100 V.

Clean, reliable power supply

  • Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence
  • Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test
  • Protection for your device under test (DUT) includes overvoltage, overcurrent, and overtemperature protection

Convenient benchtop capabilities

  • USB and LAN (LXI Core)
  • BenchVue software support and Web interface control

Compact, intuitive package

  • Save space on your bench, 2U ¼ rack
  • Easily view the high contrast OLED display
  • Intuitive on-screen menu
