Rugged Temperature USB Data Logger

Availability: In stock

SKU

AEL-USB-1PRO

Be the first to review this product

IMPORTANT: Using standard batteries could result in fire or explosion at higher temperatures

Grouped product items
Product Name	Qty
Rugged Temperature USB Data Logger £141.00
Thermometer Data Logger Calibration Certificate (Traceable) Additional Calibration Points £70.00
Thermometer Data Logger Calibration Certificate (UKAS) Additional Calibration Points £148.00
3.6V Hi Temperature AA Lithium Battery £16.00

Subtotal: 0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

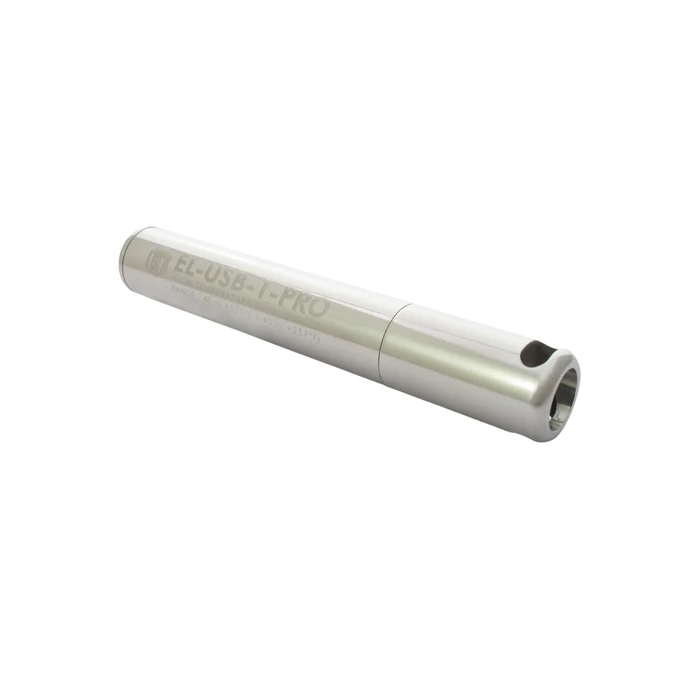

The EL-USB-1PRO Rugged USB Temperature Data Logger is engineered for tough conditions where standard loggers may fail. Designed with a durable, waterproof IP67-rated housing, this logger provides dependable performance in demanding industrial, outdoor, and refrigerated environments.

It measures temperatures from -40°C to +125°C with excellent accuracy and features an extended memory capacity of 43,000 readings—ideal for long-term monitoring applications. The EL-USB-1PRO offers flexible logging intervals and start modes, making it easy to configure to your specific requirements.

The device features built-in high and low alarm thresholds with LED indicators to alert users to temperature breaches. Its direct USB connection enables hassle-free setup and data download using the included Windows-compatible software, allowing users to generate detailed reports and temperature graphs for compliance and analysis.

Key Features

Wide temperature range of -40°C to +125°C
Rugged IP67-rated housing for waterproof and dustproof protection
Stores up to 43,000 temperature readings
Direct USB plug-in—no cables or readers needed
Configurable logging intervals and alarm thresholds
LED indicators for high/low temperature alerts
Supplied with Windows software for analysis and reporting
Ideal for use in harsh or demanding environments

Technical Specification

Temperature Range: -40°C to +125°C
Accuracy: ±0.5°C (-10°C to +40°C), otherwise ±1.0°C
Resolution: 0.1°C
Memory Capacity: 43,000 readings
Logging Interval: Adjustable from 2 seconds to 24 hours
Start Modes: Immediate, delayed, or push-button start
Alarm Thresholds: High and low temperature alarms with LED indicators
Interface: Direct USB 2.0 connection
Housing: IP67-rated waterproof and dustproof enclosure
Software: Windows-compatible software included for setup and analysis
Power Supply: 3.6V lithium battery (user-replaceable)
Dimensions: 130 x 30 x 25mm
Weight: 45g

Calibration Options

A calibration service can be purchased for this unit. Once the Service has been performed a certificate of calibration is produced and dispatched with your order. Calibration Services are performed on receipt of your order and as such will delay shipping. Details and options are outlined below.

Traceable Calibration (Logging)
Issued at 4 points:	-10°C, 5°C, 20°C & 40°C
Additional points:	From -15°C to 50°C

Traceable certification is adequate for most applications and meets the calibration requirements of ISO 9001. All measurements contained in this type of certification are traceable back to National UKAS Standards.

UKAS Calibration (Logging)
Issued at 2 points:	20°C & 30°C
Additional points:	From 10°C to 30°C

A UKAS calibration can also be considered traceable. The difference between the two is that UKAS calibrations are carried out under the remit of an ISO/IEC 17025 quality system by a laboratory that has been accredited by UKAS, to ensure the consistency and accuracy of results.
