UNI-T UTS1000B/T Series Spectrum Analyzers
UNI-T's UTS1000B/T Series of 1.5 & 3.2 GHz Performance-Series Spectrum Analyzers are designed to enhance the capabilities of electrical engineers.
-
9 kHz ~ 3.2 GHz Frequency Range
-
1 Hz ~ 1 MHz Resolution Bandwidth
-
-161 dBm Display Average Noise Level
UNI-T UTS1000B/T Series 1.5/3.2 GHz Spectrum Analyzers
Product Overview
Uni-T's UTS3000B Series of 2.1 & 3.6 GHz Performance-Series Spectrum Analyzers are designed to enhance the capabilities of electrical engineers. Featuring frequency ranges between 9 kHz to 3.2 GHz and a resolution bandwidth of 1 Hz to 1 MHz, these instruments present a multitude of advantages and applications for professionals working in the field.

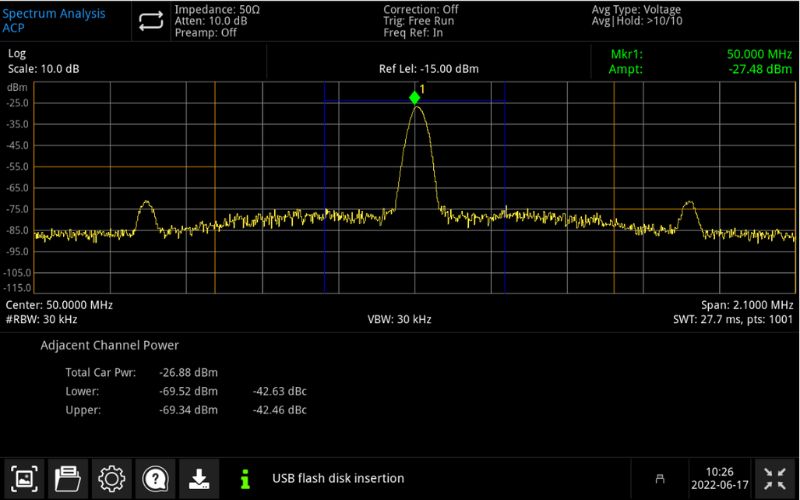

Advanced Function
The UTS1000B/T Series offers a variety of advanced instrument functions, including: Channel power, Time domain power, Occupies Bandwidth, Third Order Intermodulation, Adjacent channel power, Spectrum Monitoring, Carrier-to-noise ratio, and Harmonic.
EMI Pre-Compliance Analysis
Optional components combined with near-field probes assist in locating and resolving EMI defects in advance

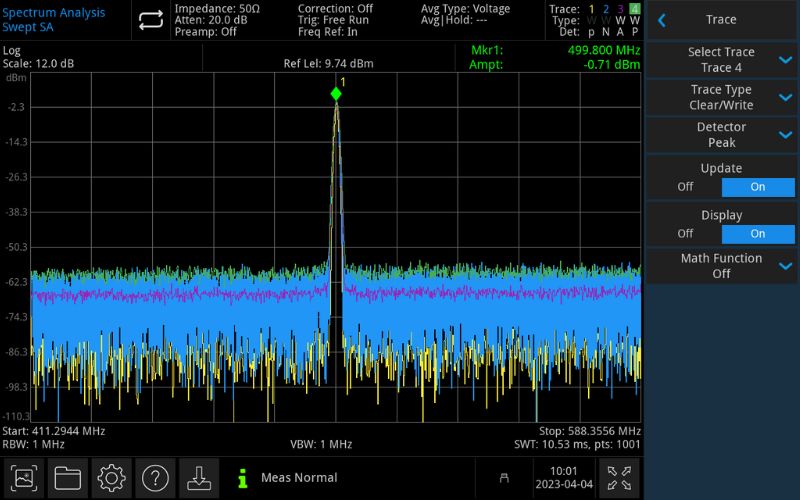

Rich Detector Functions
Positive peak, Negative peak, Sampling, Standard, Average, Quasi-peak
Intuitive Touch-Screen Operation
The 10.1-inch multi-touch HD capacitive screen streamlines menu adjustments and enables various gesture actions such as dragging, expanding, and zooming on the trace. This user-friendly interface elevates the user experience, guaranteeing swift and effective operation in a range of settings, whether in the field or laboratory.

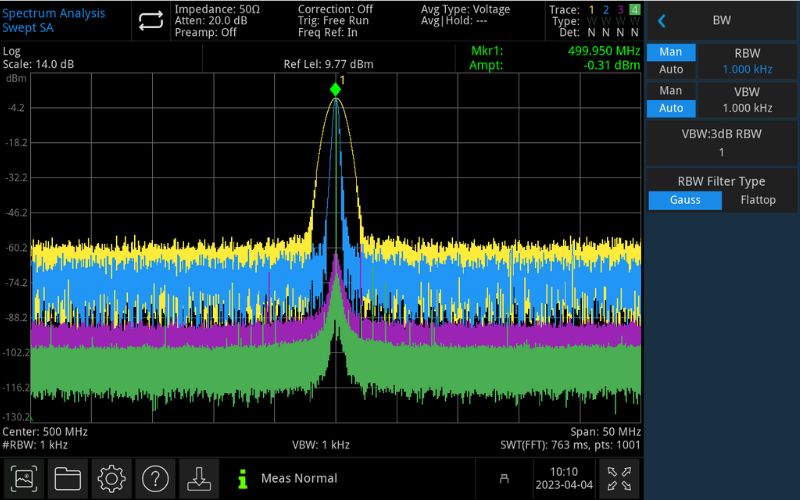

4 Traces
The UTS1000B/T Series provides 4 traces to enable comparative observation and locate abnormal signals.

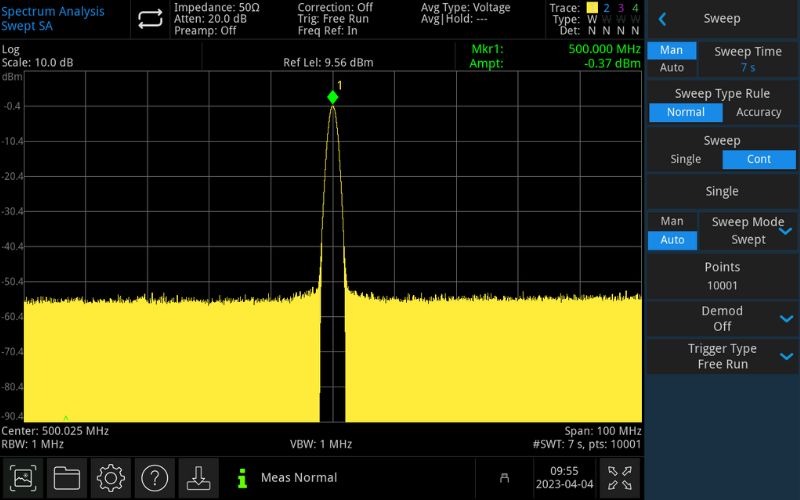

10001 Scan Points
Scan 10001 Points displays details far clearer, supports a greater effectiveness in capturing abnormal signals.

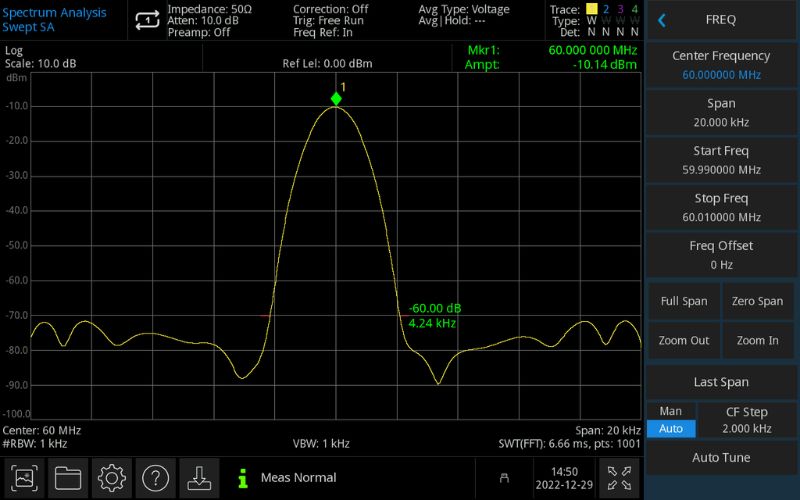

Excellent Selectivity
The UTS1000B/T Series has a stronger signal resolution capability of adjacent unequal amplitudes.

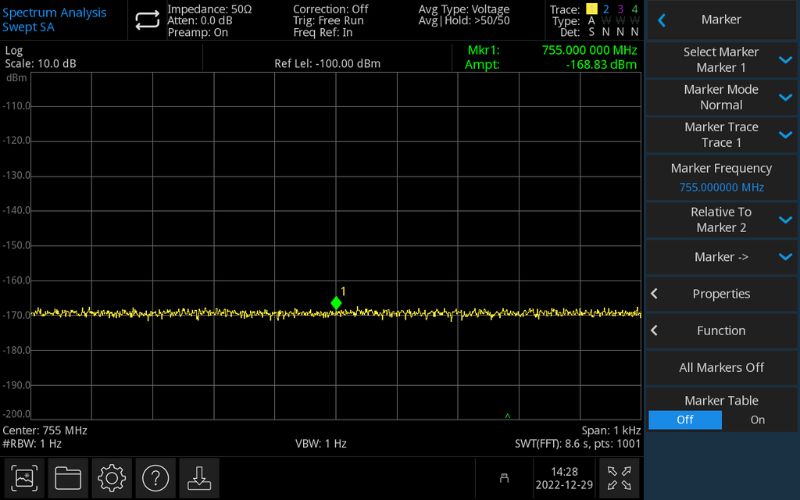

DANL <-161dBm
This series of spectrum analyzers has low bottom noise and more accurate measurements. A small signal can be accurately measured.
Key Features and Functions
Output rating : 36 W
- Voltage: 60 V
- Current: 0.6 A
- Power: 36 W
Programming accuracy : ± (% of output + offset)
- Voltage: 0.05% + 20 mV
- Current: 0.05% + 0.4 mA
Ripple & noise (20 Hz to 20 MHz)
- Voltage rms: 1.55 mV
- Voltage peak-to-peak: 30 mV
- Current rms: 200 µA
Readback accuracy : ± (% of output + offset)
- Voltage: 0.05% + 12 mV
- Current: 0.05% + 0.3 mA
Keysight E36100B Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. Use the highly accurate low-current measure feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to your instrument quickly via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device. Choose the best model for your needs: five models offer up to 5 A or 100 V.
Clean, reliable power supply
- Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence
- Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test
- Protection for your device under test (DUT) includes overvoltage, overcurrent, and overtemperature protection
Convenient benchtop capabilities
- USB and LAN (LXI Core)
- BenchVue software support and Web interface control
Compact, intuitive package
- Save space on your bench, 2U ¼ rack
- Easily view the high contrast OLED display
- Intuitive on-screen menu
