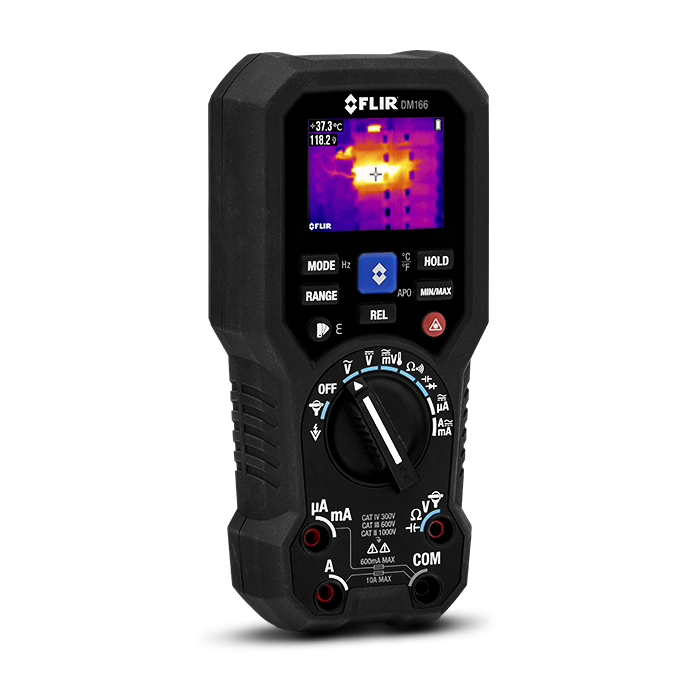

FLIR DM166 Thermal Imaging TRMS Multimeter with IGM™

Availability: In Stock

SKU

DM166

Special Price £366.00 Regular Price £499.00

FLIR DM166: Affordable multimeter with thermal imaging. Ideal for electricians, automation specialists, electronics experts, and HVAC technicians. Infrared Guided Measurement (IGM™) highlights temperature irregularities.

Enhances speed, safety, and efficiency. Perfect for complex problems in high/low voltage apps.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

FLIR DM166 Thermal Imaging TRMS Multimeter with IGM™

The FLIR DM166 stands as the least expensive multimeter that includes integrated thermal imaging. It is an essential device for electricians, automation specialists, electronics experts, and HVAC technicians operating in the commercial field. With Infrared Guided Measurement (IGM™) powered by an 80 x 60 FLIR thermal imager, the DM166 directs you visually to exact spots of temperature irregularities and potential concerns with enhanced speed, safety, and efficiency. This feature-rich multimeter serves as a perfect instrument for identifying and resolving intricate problems in applications with both high and low voltage.

- Affordable DMM with built-in thermal imaging
- Troubleshoot faster by scanning for overheating components using IGM
- Diagnose faults with various DMM test functions
- Ensure safety by identifying energized and potentially faulty equipment from a safe distance through non-contact temperature measurement
- Efficiently diagnose problems in high-voltage and low-voltage applications using a rich feature set including Variable Frequency Drive, resistance, frequency, capacitance, and more.

Technical Specification

SPECIFICATIONS
IR Resolution	60 × 80 pixels (4,800 pixels)
AC/DC Voltage	Range: 600.0 V Basic Accuracy: ±0.7% / ±0.5%
AC/DC Amps	Range: 10.00 A Basic Accuracy: ±1.0% / ±0.7%
IMAGING & OPTICAL
Focus	Fixed
IR Resolution	60 × 80 pixels (4,800 pixels)
Thermal image palettes	Rainbow, iron, gray scale
MEASUREMENT & ANALYSIS
AC/DC Amps	Range: 10.00 A Basic Accuracy: ±1.0% / ±0.7%
AC/DC mAmps	Range: 600.0 mA Basic Accuracy: ±1.0% / ±0.7%
AC/DC microAmps	Range: 4000 µA Basic Accuracy: ±1.5%
AC/DC mVolt	Range: 600.0 mV Basic Accuracy: ±1% / ±0.5%
AC/DC Voltage	Range: 600.0 V Basic Accuracy: ±0.7% / ±0.5%
Capacitance	Range: Basic Accuracy: 200.0 nF ±1.5% 200.0 µF ±1.5% 2.000 mF ±2.0% 10.00 mF ±5.0%
Continuity check	Between 30 Ω and 480 Ω
Diode Test	Range: 3.000 V Basic Accuracy: ±0.9%
Frequency Range	Range: 99.99 kHz Basic Accuracy: ±1.0%
Resistance	Range: Basic Accuracy: 600.0 Ω ±0.3% 600.0 kΩ ±0.5% 6.000 MΩ ±0.9% 60.00 MΩ ±1.5%
Temperature Range	–10 to 150°C (14 to 302°F)
Thermocouple	–40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C)
True RMS	Yes
VFD AC Voltage	Range: 600.0 V RMS Basic Accuracy: ±1.0%
POWER
Auto Power Off	Yes
Battery	3 AA batteries; optional TA04 Li-Poly rechargeable battery
ENVIRONMENTAL & CERTIFICATIONS
Drop test	3 m
IP Rating	IP40
Warranty	10 yrs on product and detector
