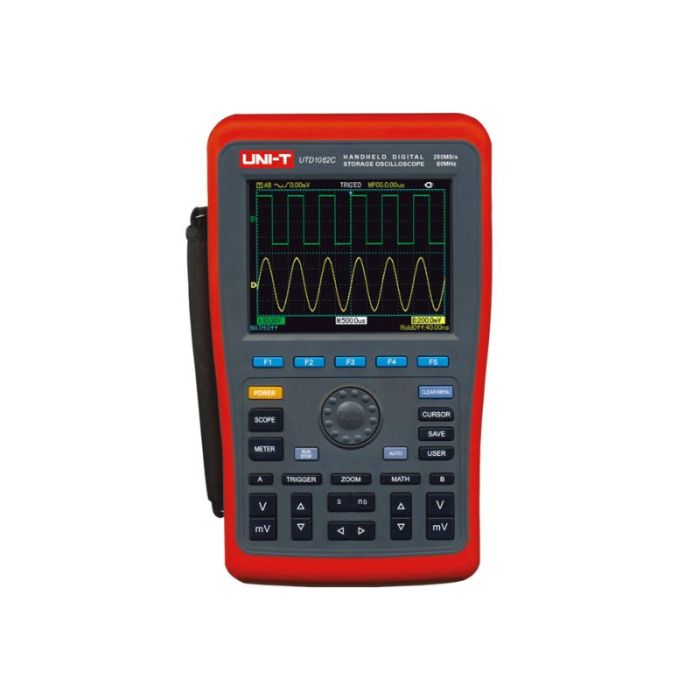

UNI-T UTD1000C Series Handheld Oscilloscope
UNI-T's UTD1000C Series of 2-channel handheld oscilloscope is a user-friendly and efficient tool with outstanding technical indicators.
-
Bandwidth: 60 MHz ~ 200 MHz
-
Maximum Memory Depth: 7.5 kpts
-
Real-Time Sample Rate: 1 GSa/s
UNI-T UTD1000C Series Handheld Oscilloscopes
UNI-T's UTD1000C Series handheld oscilloscope is a user-friendly and efficient tool with outstanding technical indicators. Powered by an external AC supply or its built-in lithium battery, this device offers powerful trigger and analytical functions for swift waveform acquisition and analysis. With a clear LCD and intuitive controls, it ensures efficient testing without a steep learning curve, making it the ideal choice for precise and quick signal observation and analysis.
Key Series Features
Auto Configuration
Efficient automatic configuration function swiftly and accurately adjusts signals with any DC component.
Fully Automatic Setup Function
The UTD1000C Series' Auto Scale function automatically adjusts vertical and time base gears in response to signal changes, eliminating the need for manual intervention.
More Parameter Measurement Types
During automatic measurement, the display provides information on 27 parameters, including cursor peak-to-peak value, amplitude, maximum and minimum values, top and bottom values, middle value, average value, RMS value, overshoot, preshoot, frequency, period, rise time, fall time, positive and negative pulse width, positive and negative duty cycle, rise delay, and fall delay.
Multifunctionality
The UNI-Trend UTD1000C series handheld oscilloscope seamlessly doubles as a multimeter for versatile measurement capabilities.
Key Features and Functions
Output rating : 36 W
- Voltage: 60 V
- Current: 0.6 A
- Power: 36 W
Programming accuracy : ± (% of output + offset)
- Voltage: 0.05% + 20 mV
- Current: 0.05% + 0.4 mA
Ripple & noise (20 Hz to 20 MHz)
- Voltage rms: 1.55 mV
- Voltage peak-to-peak: 30 mV
- Current rms: 200 µA
Readback accuracy : ± (% of output + offset)
- Voltage: 0.05% + 12 mV
- Current: 0.05% + 0.3 mA
Keysight E36100B Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. Use the highly accurate low-current measure feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to your instrument quickly via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device. Choose the best model for your needs: five models offer up to 5 A or 100 V.
Clean, reliable power supply
- Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence
- Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test
- Protection for your device under test (DUT) includes overvoltage, overcurrent, and overtemperature protection
Convenient benchtop capabilities
- USB and LAN (LXI Core)
- BenchVue software support and Web interface control
Compact, intuitive package
- Save space on your bench, 2U ¼ rack
- Easily view the high contrast OLED display
- Intuitive on-screen menu
