UNI-T UTS3000B Series Spectrum Analyzers
Uni-T's UTS3000B Series of 2.1 & 3.6GHz Performance-Series Spectrum Analyzers are designed to enhance the capabilities of electrical engineers.
-
9 kHz ~ 3.6 GHz Frequency Range
-
1 Hz ~ 3 MHz Resolution Bandwidth
UNI-T UTS3000B Series 2.1/3.6 GHz Spectrum Analyzer
Product Overview
Uni-T's UTS3000B Series of 2.1 & 3.6GHz Performance-Series Spectrum Analyzers are designed to enhance the capabilities of electrical engineers. Featuring frequency ranges between 9kHz to 3.6GHz and a resolution bandwidth of 1 Hz to 3 MHz, these instruments present a multitude of advantages and applications for professionals working in the field.
Signal Analysis Precision
The Uni-T UTS3000B Series excels in selectivity, ensuring enhanced signal resolution even when dealing with neighboring amplitudes of varying strengths. This feature proves invaluable in situations demanding accurate signal separation and analysis, such as pinpointing interference sources within densely populated frequency bands.
Superior Signal Detection
Capable of scanning up to 40,001 sweep points, this spectrum analyzer provides superior frequency resolution, facilitating the capture of signals that might be difficult to detect otherwise. This attribute proves especially beneficial in applications where pinpointing specific signals or troubleshooting intricate RF environments is crucial.
Unrivaled Sensitivity to Low-Strength Signals:
Evaluating faint signals poses challenges, typically involving managing the spectrum analyzer's inherent noise floor. The UTS3000B's, boasting a Displayed Average Noise Level (DANL) as low as -161dBm, stands out in sensitivity, facilitating the successful testing of weak signals. This capability becomes pivotal in applications where signal strength is minimal, like monitoring low-power transmissions or discerning subtle variations in signals.

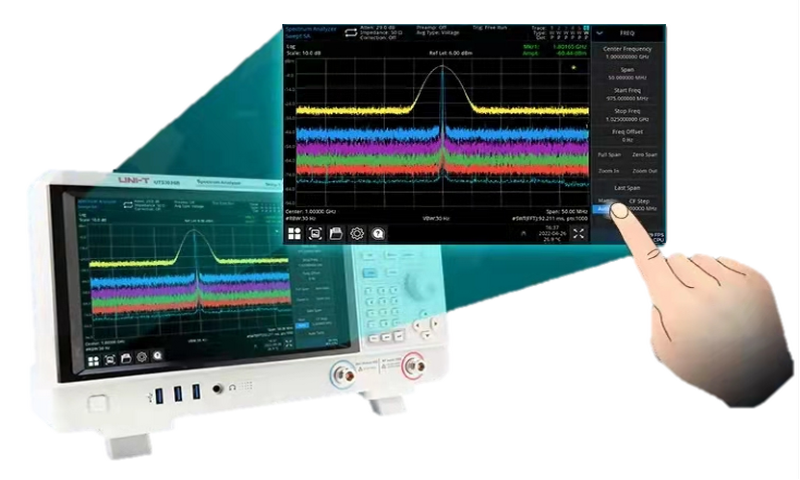

Intuitive Touch-Screen Operation
The 10.1-inch multi-touch HD capacitive screen streamlines menu adjustments and enables various gesture actions such as dragging, expanding, and zooming on the trace. This user-friendly interface elevates the user experience, guaranteeing swift and effective operation in a range of settings, whether in the field or laboratory.
Key Features and Functions
Output rating : 36 W
- Voltage: 60 V
- Current: 0.6 A
- Power: 36 W
Programming accuracy : ± (% of output + offset)
- Voltage: 0.05% + 20 mV
- Current: 0.05% + 0.4 mA
Ripple & noise (20 Hz to 20 MHz)
- Voltage rms: 1.55 mV
- Voltage peak-to-peak: 30 mV
- Current rms: 200 µA
Readback accuracy : ± (% of output + offset)
- Voltage: 0.05% + 12 mV
- Current: 0.05% + 0.3 mA
Keysight E36100B Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. Use the highly accurate low-current measure feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to your instrument quickly via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device. Choose the best model for your needs: five models offer up to 5 A or 100 V.
Clean, reliable power supply
- Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence
- Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test
- Protection for your device under test (DUT) includes overvoltage, overcurrent, and overtemperature protection
Convenient benchtop capabilities
- USB and LAN (LXI Core)
- BenchVue software support and Web interface control
Compact, intuitive package
- Save space on your bench, 2U ¼ rack
- Easily view the high contrast OLED display
- Intuitive on-screen menu
