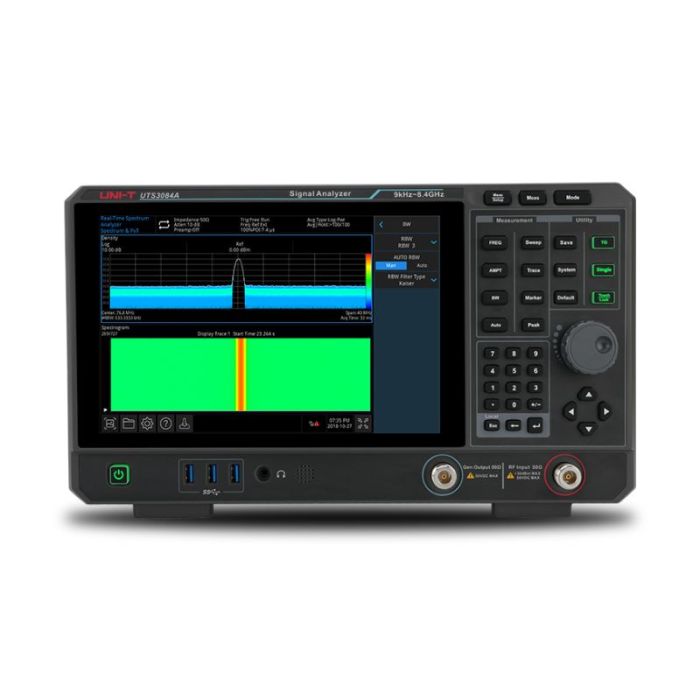

UNI-T UTS3000A Series Spectrum Analyzers

The UNI-T UTS3000A Series Spectrum Analysers offer a frequency range of 9 kHz to 8.4 GHz, making them ideal for a wide range of testing applications. Designed for enterprise R&D, factory production, education, and scientific research, they provide reliable signal analysis and can serve as the core equipment for automated control systems.

Key Features:

• Wide frequency range from 9 kHz to 8.4 GHz, ideal for diverse signal analysis applications.
• Ultra-low displayed average noise level (DANL) of -165 dBm/Hz (typical) for enhanced signal clarity.
• Low phase noise of < -100 dBc/Hz at a 10 kHz offset for high-precision measurements.
• Full amplitude accuracy within ±0.7 dB, ensuring reliable and accurate readings.
• High-resolution sweep with up to 40,001 sweep points for detailed spectrum analysis.
• Fine-tuned resolution bandwidth (RBW) as low as 1 Hz for precise signal differentiation.
• Integrated tracking generator output and vector network analysis for expanded testing capabilities.
• Real-time spectrum analysis mode with probability density spectrum and standard spectrum display for real-time signal visualization.
• Multiple trigger modes and customisable trigger templates for flexible signal detection.
• Optional real-time bandwidth up to 40 MHz, enabling advanced analysis functions.
• One-key measurement function (optional) for streamlined testing.
• EMI analysis support (optional) for compliance and interference testing.
• Analog demodulation and vector signal analysis (optional) for in-depth modulation assessment.
• 10.1-inch high-resolution (1280 × 800) multi-touch display for intuitive operation.
• Supports SCPI commands for seamless integration into automated testing systems.
