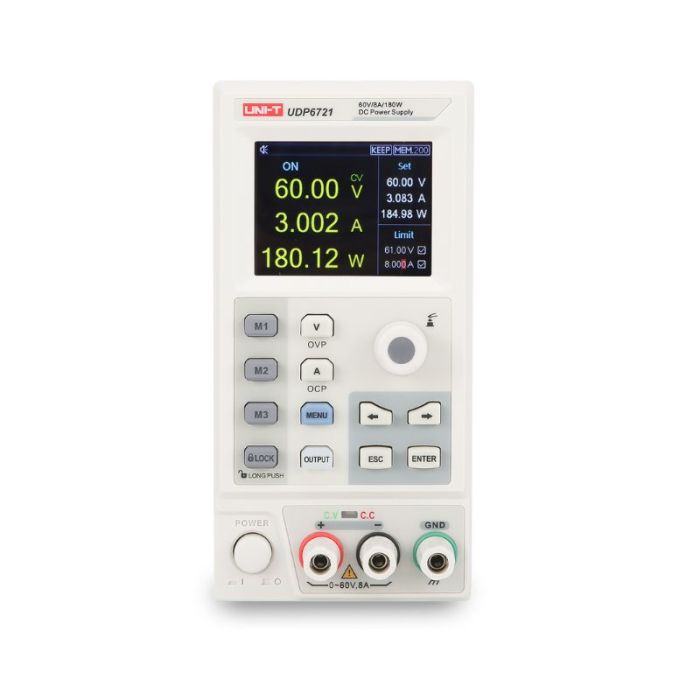

UNI-T UDP6700 Series Programmable DC Power Supplies

Availability: Longer Lead Time contact us

Only %1 left

SKU

UDP6700

£160.85

The UNI-T UDP6700 Series of single-channel programmable DC power supplies is designed to provide users with a cost-effective power supply for education, research, manufacturing and industrial applications.

Output Current: 0 ~ 30 A
Output Voltage: 0 ~ 80 V
Total Power: 360 W

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

UNI-T UDP6700 Series Programmable DC Power Supplies

Product Overview

Introducing the UDP6700 Series: a high-performance programmable DC power supply engineered to offer a broad output range, making it ideal for various applications across teaching, scientific research, R&D, manufacturing, and industrial sectors. Designed with cost-effectiveness in mind, this DC programmable power supply equipment delivers superior performance to meet diverse needs. With its enhanced power ratio, it caters to a wide array of applications, ensuring versatility. Plus, the inclusion of an HDLCD display enhances the user experience, facilitating precise measurement and streamlined debugging processes.

LCD interactive interface

Equipped with a 4.3-inch high-definition display screen, this device offers users a user-friendly interface with diverse functions and straightforward operation. It allows real-time monitoring of the power supply's set output voltage/current, actual output voltage/current, and protection output voltage/current values, presenting a simple and comprehensive interface for easy operation.

List and Delay Functions

The UDP6700 Series provides 48 sets of editable points. Users can customise the output list to display automatic measurements. Delayer functions can also be edited to enable the power delay and on-off operation, streamlining user accessibility.

Wide Range Output

The UDP6700 Series

Rich Remote Control Interface

Featuring a standard RS232 communication interface, Ethernet interface, Digital I/O, and both master and slave USB interfaces, this device allows remote control through Ethernet, RS232, and USB connections. Utilizing host computer software enables seamless software control.

Key Features and Functions

Output rating : 36 W

Voltage: 60 V
Current: 0.6 A
Power: 36 W

Programming accuracy : ± (% of output + offset)

Voltage: 0.05% + 20 mV
Current: 0.05% + 0.4 mA

Ripple & noise (20 Hz to 20 MHz)

Voltage rms: 1.55 mV
Voltage peak-to-peak: 30 mV
Current rms: 200 µA

Readback accuracy : ± (% of output + offset)

Voltage: 0.05% + 12 mV
Current: 0.05% + 0.3 mA

Keysight E36100B Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. Use the highly accurate low-current measure feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to your instrument quickly via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device. Choose the best model for your needs: five models offer up to 5 A or 100 V.

Clean, reliable power supply

Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence
Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test
Protection for your device under test (DUT) includes overvoltage, overcurrent, and overtemperature protection

Convenient benchtop capabilities
