UNI-T UT3550 Series Handheld Battery Tester

Availability: In Stock / Short Lead Time

SKU

UT3550

Be the first to review this product

£1,399.00

Resistance Range: 0.001mΩ~30.00Ω
Voltage Range: 0.0001V~100.00V
Voltage: 0.05% & Resistance: 0.5% Accuracy

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

UNI-T UT3550 Handheld Battery Tester

Product Key Features

The UNI-T UT3550 stands as a portable battery tester, employing automatic real-time detection. Combining the portability of handheld devices and the superior performance of bench instruments, it ensures high accuracy and resolution. Equipped with a USB Type-C interface for remote control, data acquisition, and analysis, supporting the SCPI protocol. Primarily utilized for quality inspections of various batteries, UPS can be directly measured online with a high degree of precision.

High Measurement Accuracy

Resistance measurement range： 0.001mΩ~30.00Ω ；
Voltage measurement range： 0.0001V～100.000V

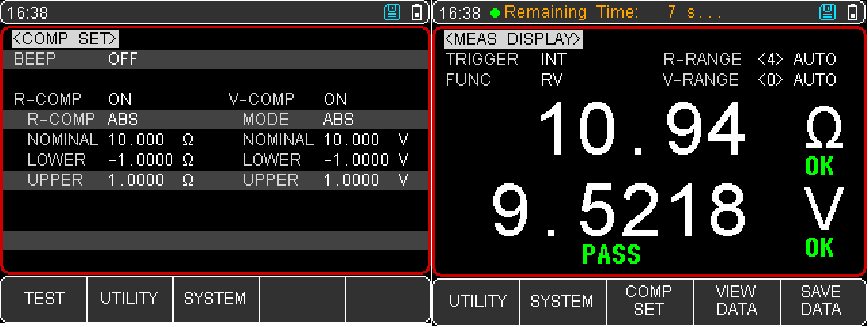

Sorting Function

Utilize three comparison modes: direct reading, percentage, and absolute value. Facilitating swift battery screening for your convenience.

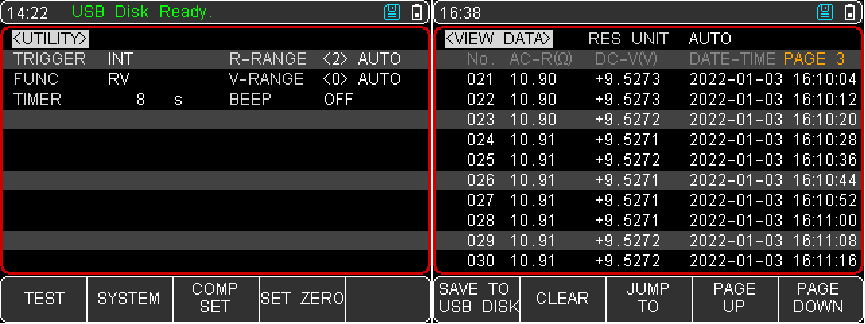

Timing Test and Save Data Function

Adjust the interval time for automatic recording of measurement data, allowing storage of up to 500 sets. Easily export data in CSV format to a USB flash disk for convenient analysis.

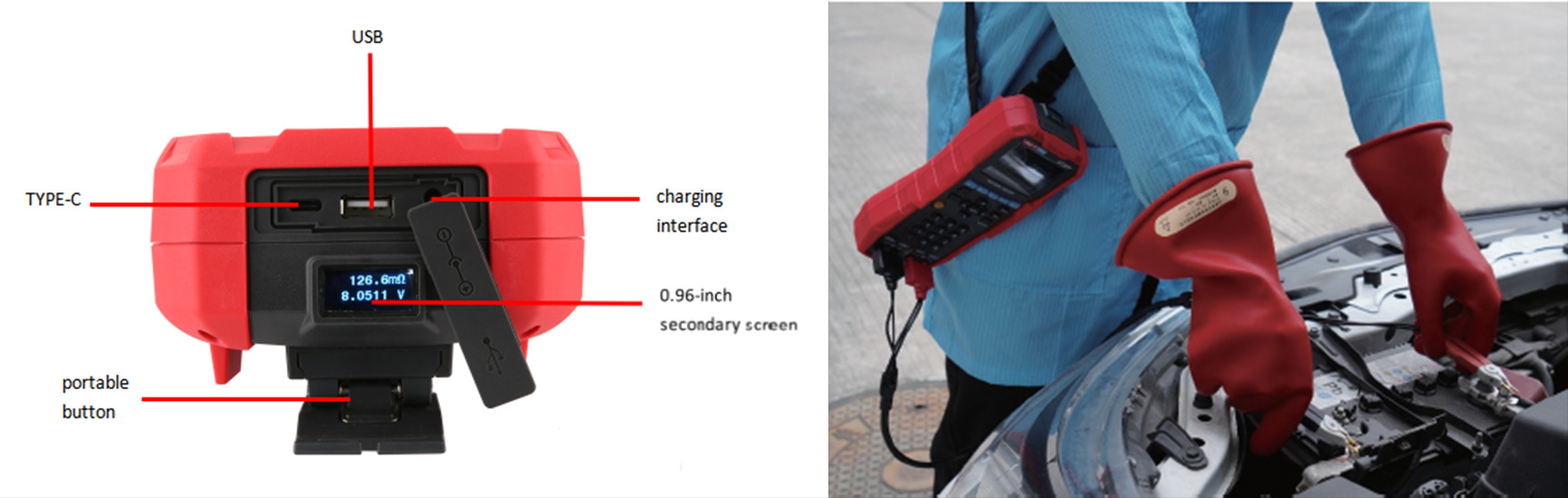

Interface & Protocol Support

Standard connections include Type-C for host computer control, USB for saving data and screenshots, and a charging interface. The instrument facilitates remote control and data acquisition with support for the SCPI protocol. The top secondary display, along with a lanyard/shoulder strap, enhances versatility for various testing scenarios.

Standard PC Software

Enable remote control, allowing the PC to configure, observe, and analyze data.

Key Features and Functions

Output rating : 36 W

Voltage: 60 V
Current: 0.6 A
Power: 36 W

Programming accuracy : ± (% of output + offset)

Voltage: 0.05% + 20 mV
Current: 0.05% + 0.4 mA

Ripple & noise (20 Hz to 20 MHz)

Voltage rms: 1.55 mV
Voltage peak-to-peak: 30 mV
Current rms: 200 µA

Readback accuracy : ± (% of output + offset)

Voltage: 0.05% + 12 mV
Current: 0.05% + 0.3 mA

Keysight E36100B Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. Use the highly accurate low-current measure feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to your instrument quickly via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device. Choose the best model for your needs: five models offer up to 5 A or 100 V.

Clean, reliable power supply

Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence
Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test
Protection for your device under test (DUT) includes overvoltage, overcurrent, and overtemperature protection

Convenient benchtop capabilities
