UNI-T MSO/UPO2000 Series Digital Storage Oscilloscopes
UNI-T's MSO/UPO2000 series digital oscilloscope combines ease of use, excellent technical indicators, and numerous features for faster and more accurate measurement tasks, including the precise capture of abnormal events with Fast Acquire technology.
-
Bandwidth: 100 ~ 200 MHz
-
Maximum Memory Depth: 56 Mpts
-
Real-Time Sample Rate: 2 GSa/s
UNI-T MSO/UPO2000 Series Digital Storage Oscilloscopes
UNI-T's MSO/UPO2000 Series digital oscilloscope is a high-performance instrument featuring UNI-T's innovative Ultra Phosphor technology and is designed with diverse applications in mind including communication, semiconductor, and consumer electronics. This oscilloscope combines ease of use, excellent technical indicators, and numerous features for faster and more accurate measurement tasks, including the precise capture of abnormal events with Fast Acquire technology.
Key Series Features
Web Control
Featuring a built-in Web Server, this instrument allows remote control, waveform observation, and access to measurement results via a browser. This capability is particularly suited for specialized environments with high-pressure and high-temperature requirements. Achieving cross-platform control without the need for driver software or host computer installations, the MSO/UPO2000 Series supports two web page layouts and touch operations for both PCs and mobile phones. This design enhances usability, providing a more accessible and convenient user experience.

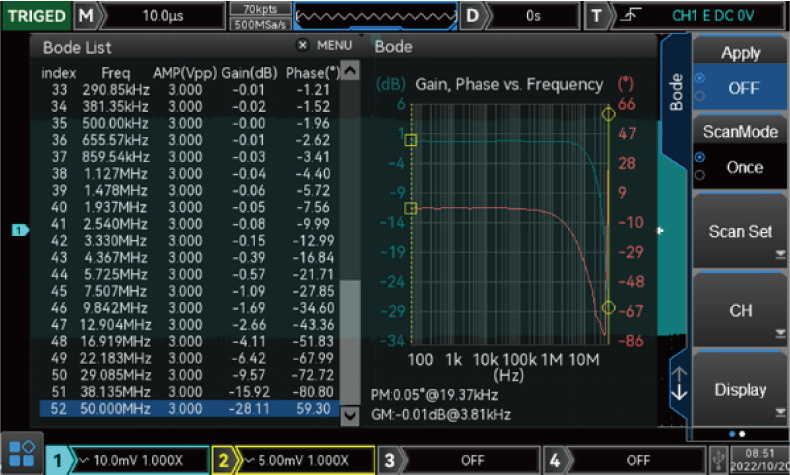

Bode Plot
Suitable for loop analysis, this is a crucial measurement frequently employed to characterize the frequency response (including gain, phase, and frequency) of diverse electronic designs found in contemporary applications, including passive filters, amplifier circuits, and negative feedback networks utilized in switch-mode power supplies.

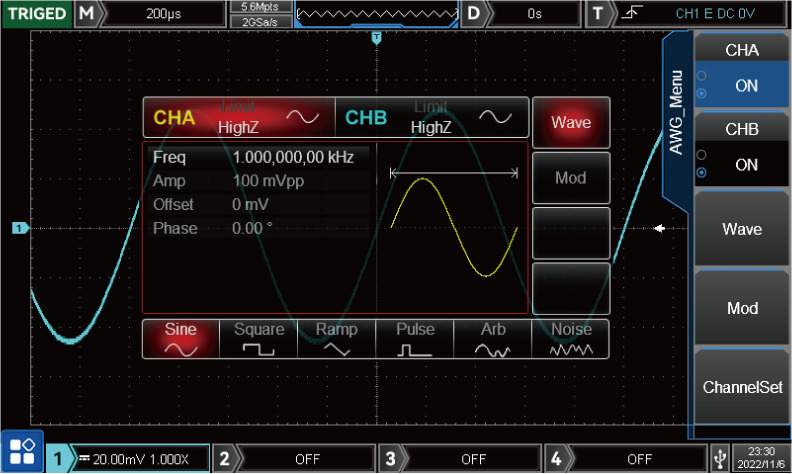

AWG Function Arbitrary Waveform Generator
With its integrated dual-channel function arbitrary waveform generator, the MSO/UPO2000 Series can produce a variety of waveforms, including sine waves, square waves, ramp waves, pulse waves, arbitrary waves, noise, and DC. It achieves a maximum frequency output of 50MHz for sine waves.

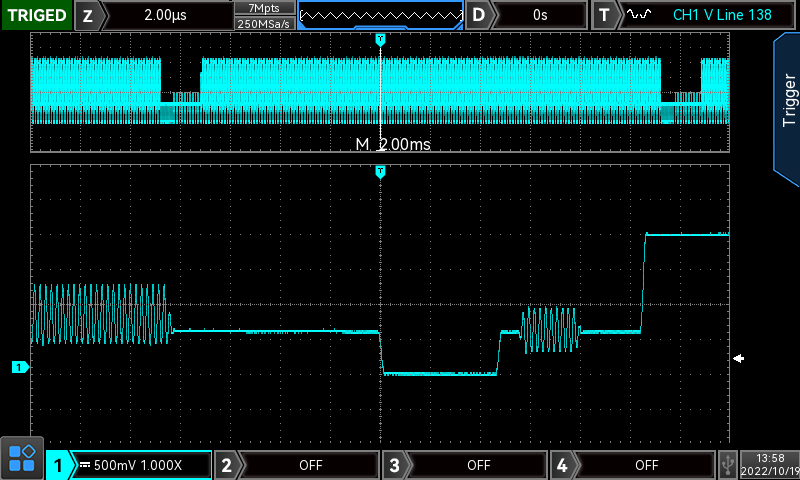

Maximum Memory Depth up to 56Mpts per channel
This oscilloscope effectively sustains a high sampling rate across an extended time base range. It adeptly balances capturing both the overall waveform and its finer details, significantly enhancing the capability to capture abnormal waveforms.
Key Features and Functions
Output rating : 36 W
- Voltage: 60 V
- Current: 0.6 A
- Power: 36 W
Programming accuracy : ± (% of output + offset)
- Voltage: 0.05% + 20 mV
- Current: 0.05% + 0.4 mA
Ripple & noise (20 Hz to 20 MHz)
- Voltage rms: 1.55 mV
- Voltage peak-to-peak: 30 mV
- Current rms: 200 µA
Readback accuracy : ± (% of output + offset)
- Voltage: 0.05% + 12 mV
- Current: 0.05% + 0.3 mA
Keysight E36100B Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. Use the highly accurate low-current measure feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to your instrument quickly via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device. Choose the best model for your needs: five models offer up to 5 A or 100 V.
Clean, reliable power supply
- Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence
- Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test
- Protection for your device under test (DUT) includes overvoltage, overcurrent, and overtemperature protection
Convenient benchtop capabilities
- USB and LAN (LXI Core)
- BenchVue software support and Web interface control
Compact, intuitive package
- Save space on your bench, 2U ¼ rack
- Easily view the high contrast OLED display
- Intuitive on-screen menu
