UNI-T UT8805E Benchtop Digital Multimeter

Availability: In Stock

SKU

UT8805E

£395.85

The UNI-T UT8805E, an advanced desktop digital multimeter featuring auto-ranging, true RMS, 199999 counts, and a 4.3-inch TFT LCD.

100 kHz Frequency Response
200000 Counts Multimeter

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

UNI-T UT8805E Benchtop Digital Multimeter

Product Overview

Introducing the UNI-T UT8805E, an advanced desktop digital multimeter featuring auto-ranging, true RMS, 199999 counts, and a 4.3-inch TFT LCD. With capabilities like Pass/Fail, maximum/minimum/average/relative value measurement, a 10K reading history data record, and 1GB Nand Flash total capacity, it excels as a superior electrical measuring instrument. Its versatility extends to electronics, communications, manufacturing, and various industries, making it an essential experimental tool in colleges and universities.

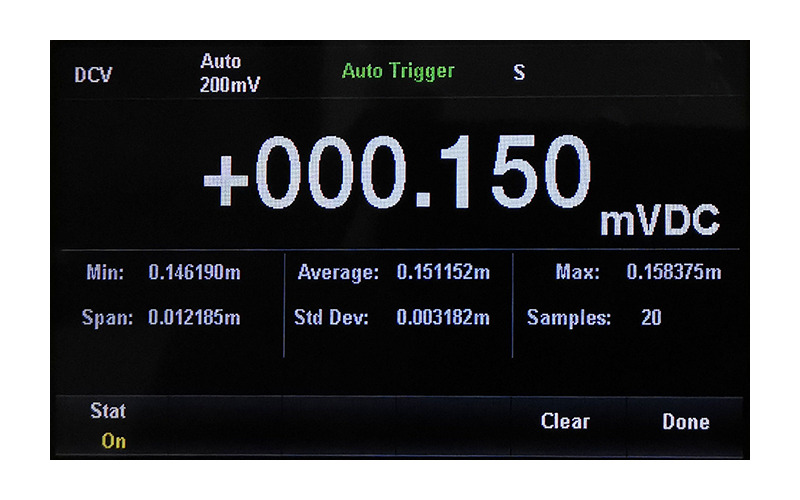

Mathematical operations and reading statistics

The UT8805E's mathematical operations mostly consist of five primary functions—statistics, limits, dB, relative operations, and dBm—mathematical operations cater to diverse measurement needs. Select specific functions based on different conditions for voltage, current, resistance, capacitance, frequency/period, and temperature measurements. Note that dB and dBm operations are exclusively applicable to voltage measurements.

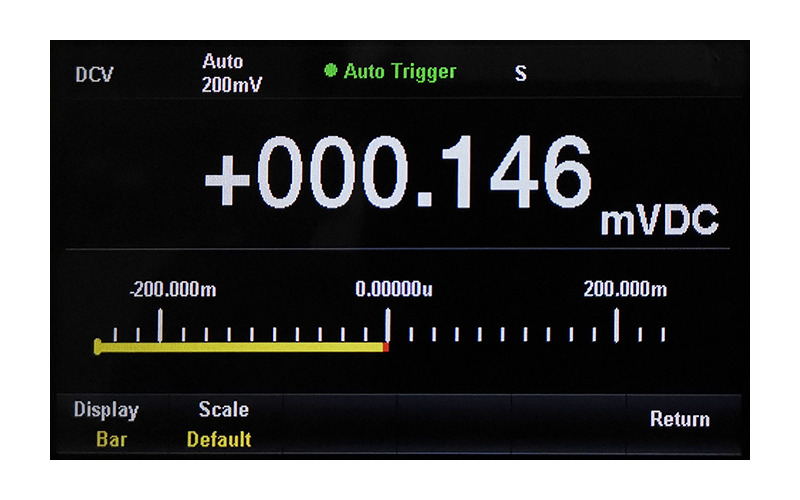

Display Mode

Allow users to observe the measured data through four viewing modes: "number," "bar graph," "trend graph," and "histogram.

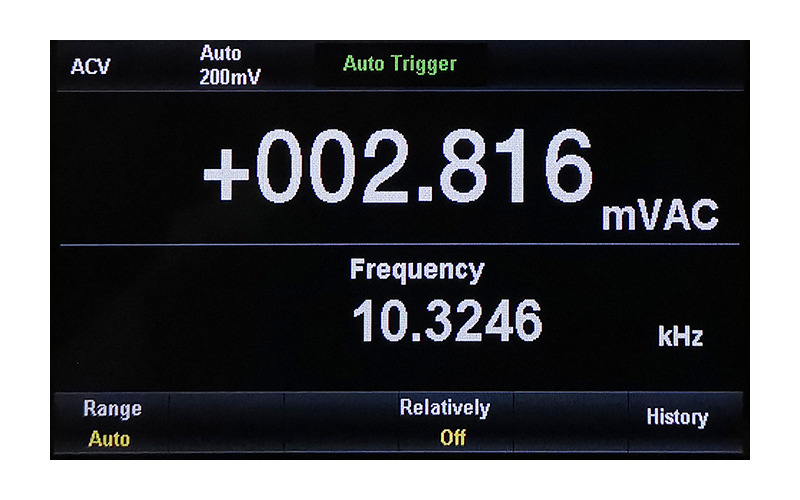

Dual Display Function

While measuring the voltage or current of an AC signal, you can simultaneously gauge its frequency. In this scenario, both the voltage or current and the corresponding frequency value are displayed.

Key Features and Functions

Output rating : 36 W

Voltage: 60 V
Current: 0.6 A
Power: 36 W

Programming accuracy : ± (% of output + offset)

Voltage: 0.05% + 20 mV
Current: 0.05% + 0.4 mA

Ripple & noise (20 Hz to 20 MHz)

Voltage rms: 1.55 mV
Voltage peak-to-peak: 30 mV
Current rms: 200 µA

Readback accuracy : ± (% of output + offset)

Voltage: 0.05% + 12 mV
Current: 0.05% + 0.3 mA

Keysight E36100B Series basic DC power supplies feature a compact size (2U, ¼-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. Use the highly accurate low-current measure feature for demanding measurements. Protect your DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to your instrument quickly via the intuitive front-panel interface, a Web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device. Choose the best model for your needs: five models offer up to 5 A or 100 V.

Clean, reliable power supply

Low, normal mode noise specifications assure quality power for precision circuitry applications enabling you to power your design with confidence
Accurate voltage/current programming and read back capability provides excellent control to precisely power your device under test
Protection for your device under test (DUT) includes overvoltage, overcurrent, and overtemperature protection

Convenient benchtop capabilities
